Description du produit « Carte mère GIGABYTE A620M DS3H (AM5) »

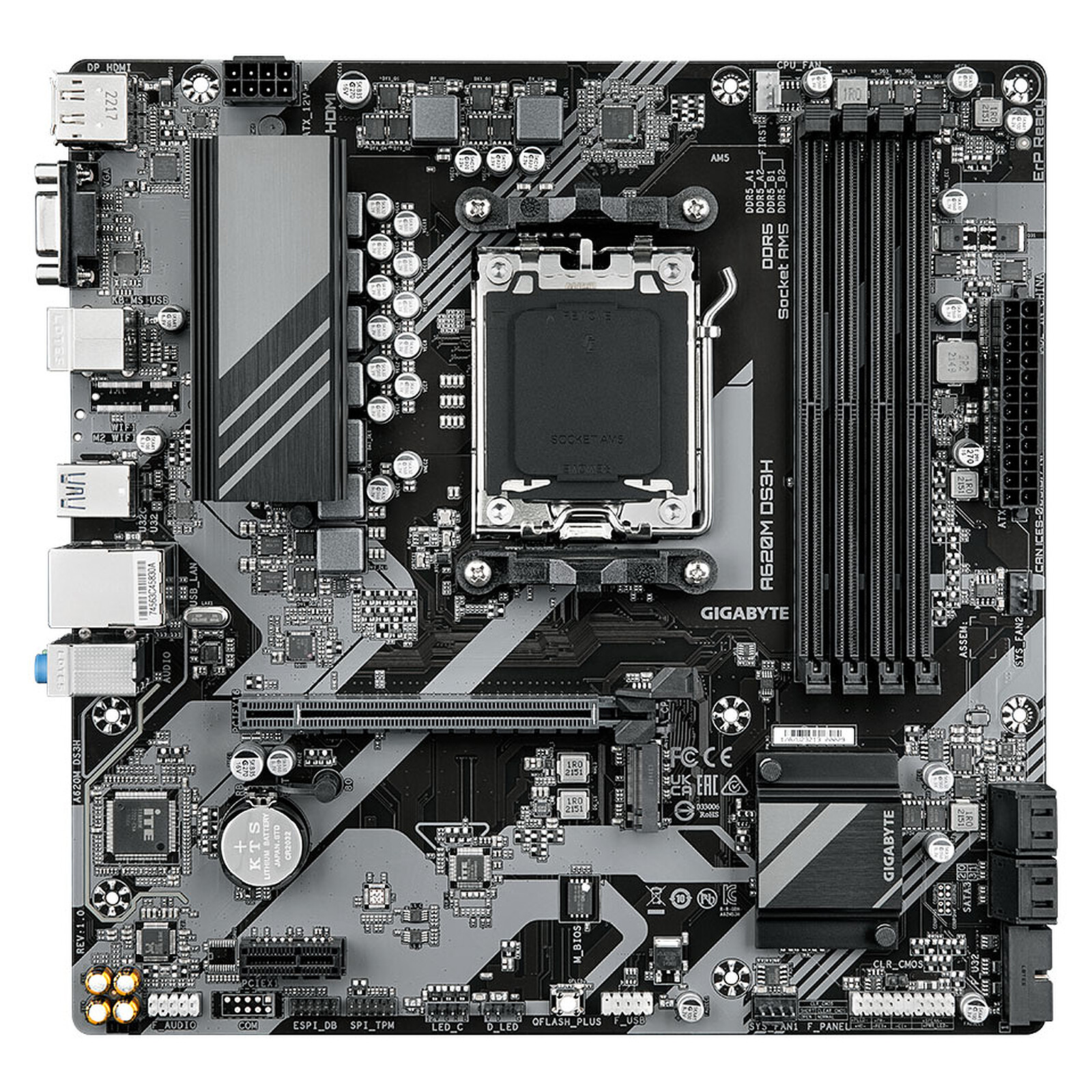

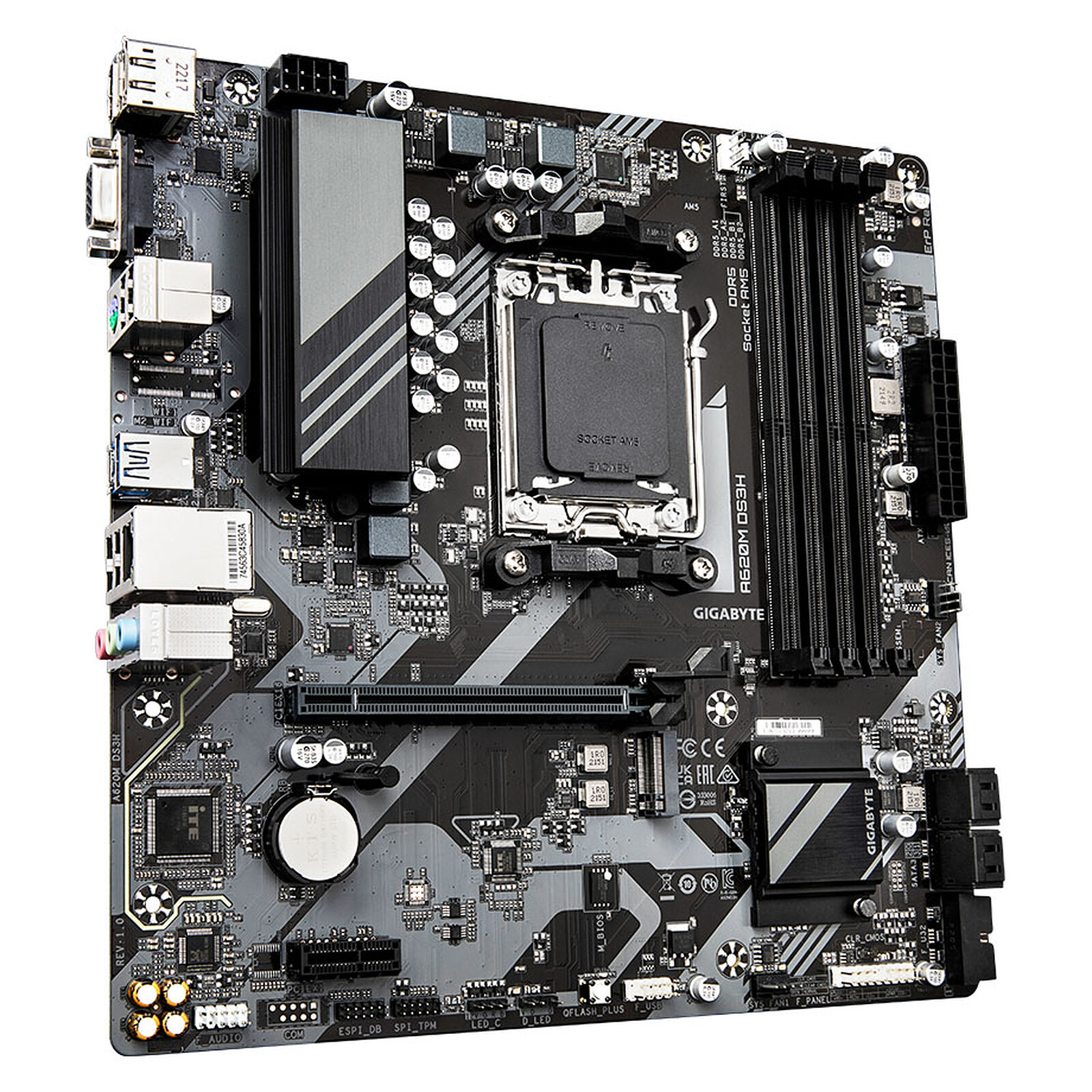

Carte mère GIGABYTE A620M DS3H (AM5)
(Voir tous les produits GIGABYTE)
----------------------
Fiche technique carte mère GIGABYTE A620M DS3H (AM5)
Code EAN : 4719331855567
Général
- Micro ATX Form Factor
- Dimensions 24.4cm x 24.4cm
Processeur
- AMD Socket AM5, support for AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
Chipset
- AMD A620
Mémoire
- Support for DDR5 8000(OC), 7800(OC), 7600(OC), 7200(OC), 7000(OC), 6800(OC), 6600(OC), 6400(OC), 6200(OC), 6000(OC), 5600(OC), 5200, 4800 MT/s
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Carte Graphique Intégrée
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
- Support for DisplayPort 1.4 version
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- Support for HDMI 2.1 version and HDCP 2.3
- Support for native HDMI 2.1 TMDS compatible ports
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- Support for up to triple-display at the same time
Audio
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
Réseau
- Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Slots d'extension
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x16 mode
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
- - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Stockage
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:
- AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
- CPU
- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 port on the back panel
- 1 x USB 2.0/1.1 port on the back panel
- Chipset
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Connecteurs internes
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 2 x system fan headers
- 1 x addressable LED strip header
- 1 x RGB LED strip header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB 3.2 Gen 1 header
- 1 x USB 2.0/1.1 header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x Clear CMOS jumper

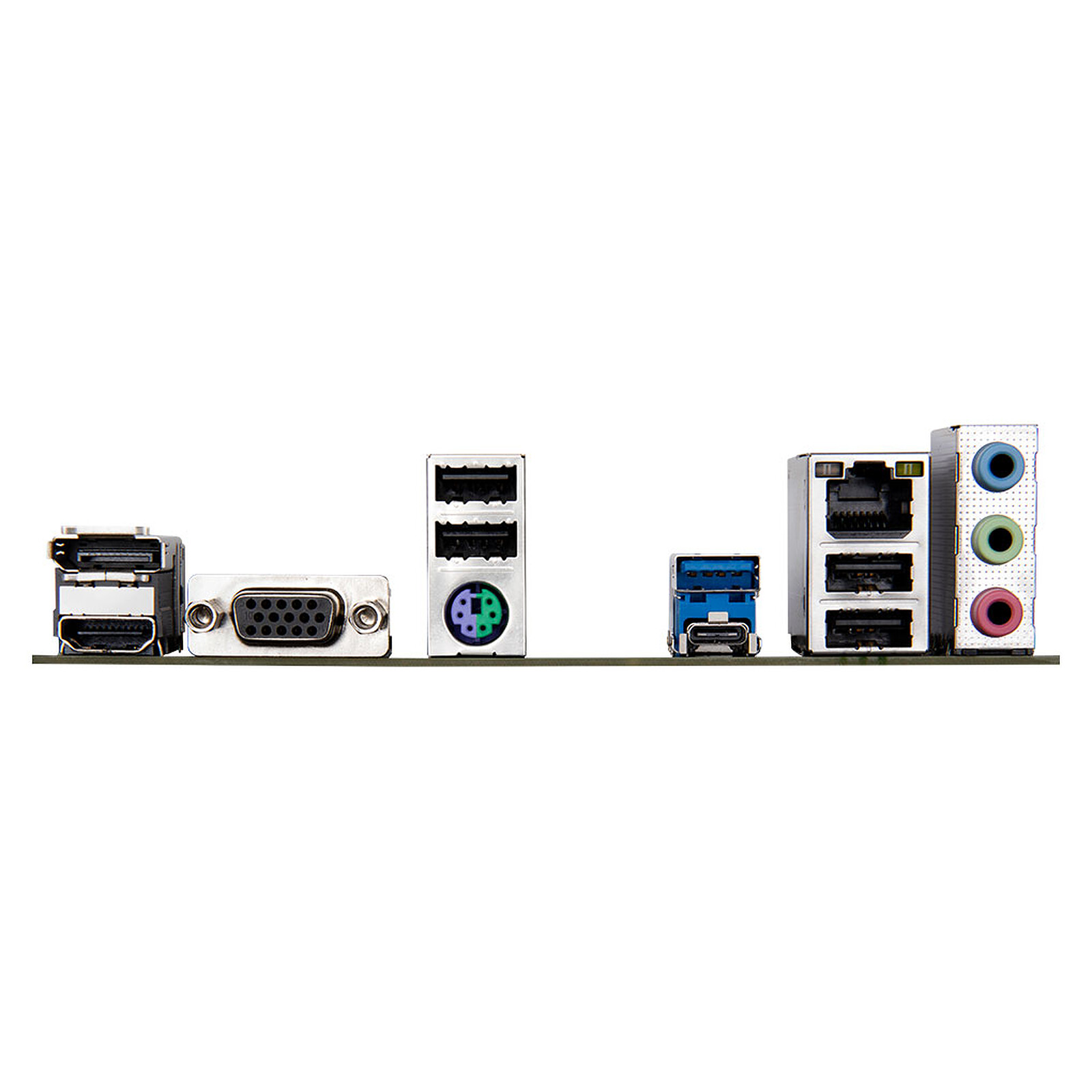

Connecteur Arrière
- 1 x PS/2 keyboard/mouse port
- 1 x USB Type-C port, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 port
- 4 x USB 2.0/1.1 ports
- 1 x HDMI port
- 1 x DisplayPort
- 1 x D-Sub port
- 1 x RJ-45 port
- 3 x audio jacks
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Système d'Exploitation
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
(Voir le site du constructeur)
