Description du produit « Carte mère GIGABYTE B860M D3HP (1851) »
Carte mère GIGABYTE B860M D3HP (1851)
(Voir tous les produits GIGABYTE)
----------------------
Fiche technique carte mère GIGABYTE B860M D3HP (1851)
Code EAN : 4719331866860
Général
- Format : Micro ATX
- Dimensions : 24,4 cm x 24,4 cm
Processeur
- LGA1851 socket : Support for Intel Core Ultra Processors
- L3 cache varies with CPU
Mémoire
- Support for DDR5 9066(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 5600 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for Extreme Memory Profile (XMP) memory modules
Carte Graphique Intégrée
- Integrated Graphics Processor-Intel HD Graphics support
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
- Support for HDMI 2.1 version and HDCP 2.3
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
- Support for DisplayPort 2.1 version
Audio
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
Réseau
- Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Port d'expansion
- CPU
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16
- The PCIEX16 slot can only support a graphics card or an NVMe SSD
- Chipset
- -2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Stockage
- CPU
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2A_CPU)
- Chipset
- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)(M2Q_SB)
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
- Chipset
- 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
- 3 x USB 2.0/1.1 ports on the back panel
- Chipset+USB 2.0 Hub
- 4 x USB 2.0/1.1 ports available through the internal USB headers
Connecteurs internes
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 1 x system fan header
- 1 x system fan/water cooling pump header
- 2 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header
- 2 x M.2 Socket 3 connectors
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x USB Type-C header, with USB 3.2 Gen 1 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
- 1 x serial port header
- 1 x Clear CMOS jumper

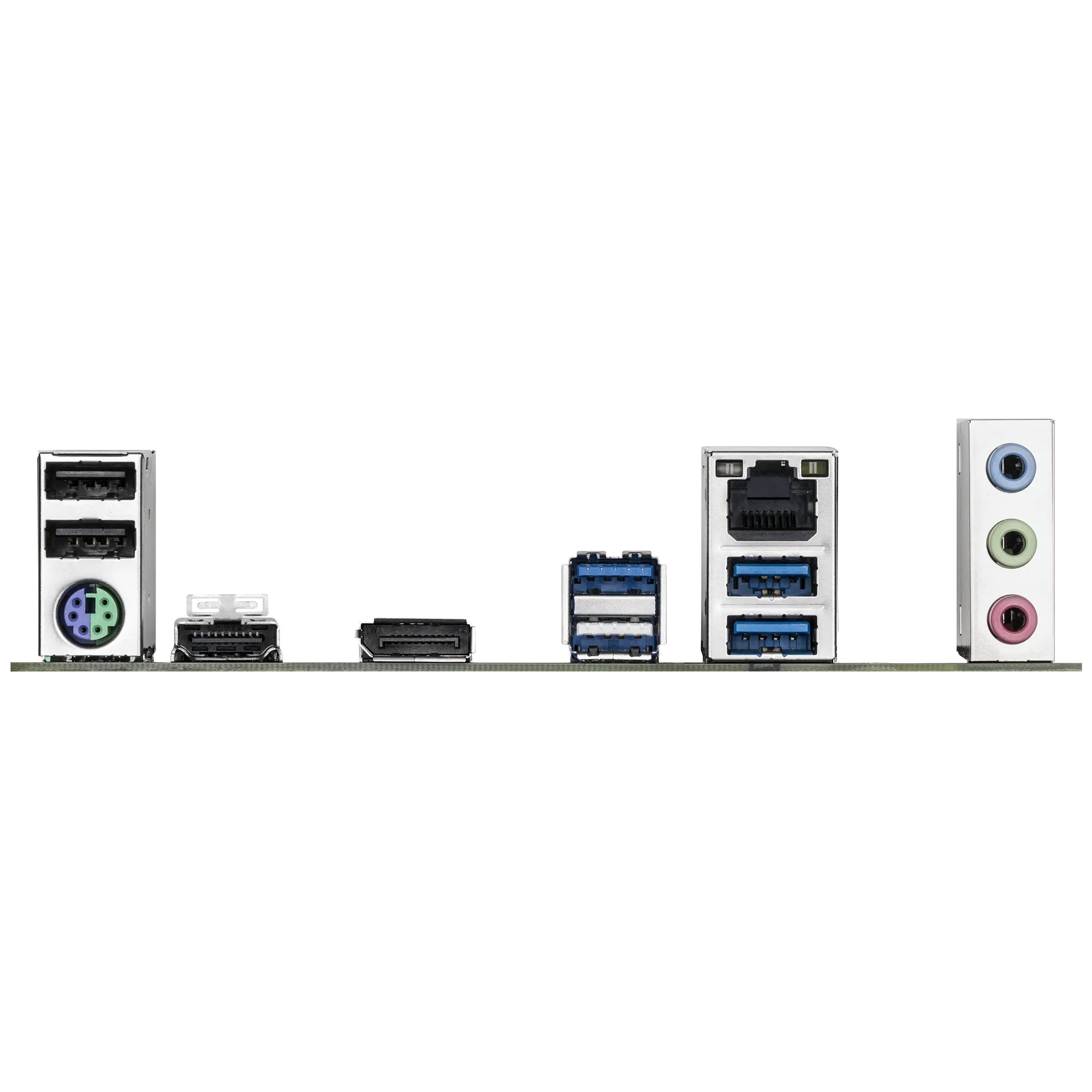

Connecteur Arrière
- 3 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 1 x DisplayPort
- 1 x HDMI port
- 3 x USB 3.2 Gen 1 ports
- 1 x RJ-45 port
- 3 x audio jacks
BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Système d'exploitation
- Support for Windows 11 64-bit
- Support for Windows 10 64-bit
- The Intel NPU driver is only supported on Windows 11
(Voir le site du constructeur)
