Description du produit « Carte mère mATX ASUS B365M-A (1151) »

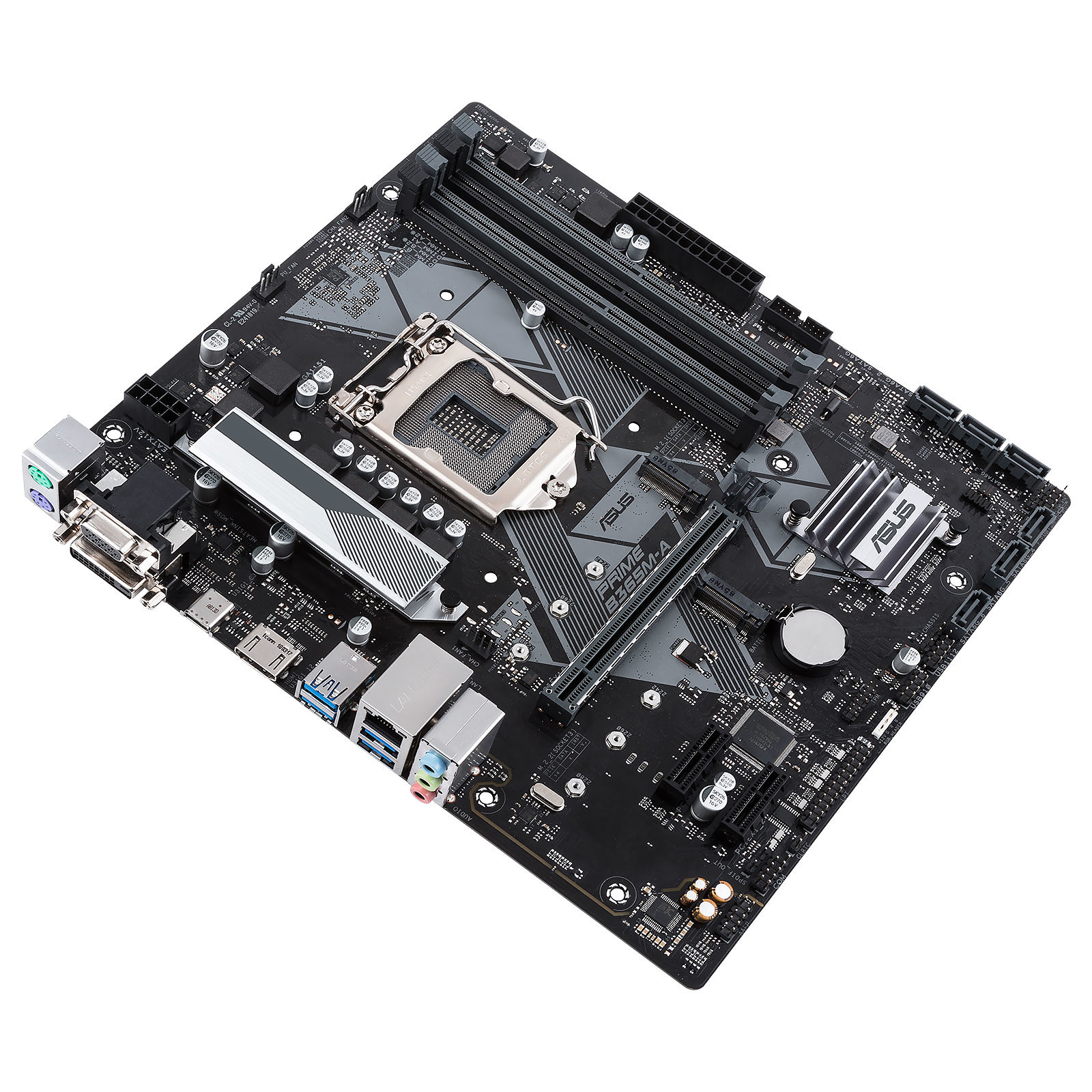

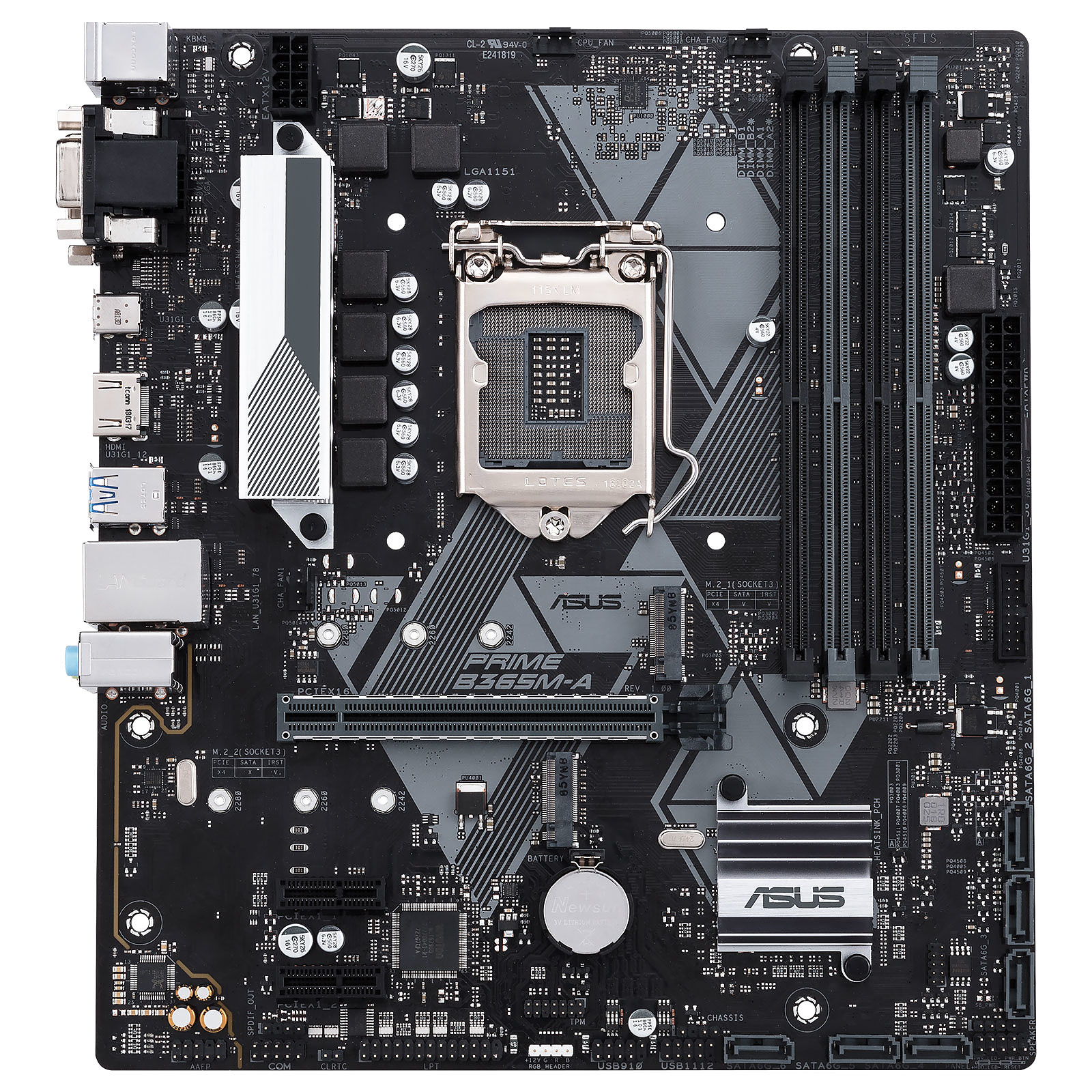

Carte mère mATX ASUS B365M-A (1151)
---------------------------------------------
Fiche technique carte mère mATX ASUS B365M-A (1151)
Code EAN : 4718017239035
Général
- Format : micro ATX
- Dimensions : 24,4 cm x 21,8 cm
Processeur
- 8 et 9ème génération Intel Core i7, Core i5, Core i3, Pentium, Celeron
- Socket 1151
- Support des processeurs Intel gravés en 14 nm
- Support de la technologie Intel Turbo Boost 2.0
Chipset
- Intel B365
Mémoire
- 4 x DIMM, Max. 64 Go, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered
- Architecture mémoire Dual Channel
- Support de la technologie Intel Extreme Memory Profile (XMP)
Carte graphique
- Intel HD Graphics intégrée
- Multi-VGA output support : HDMI/DVI-D/D-Sub
- Supports HDMI 1.4b avec une résolution maximum de 4096 x 2160 pixels @ 30 Hz
- Supports DVI avec une résolution maximum de 1920 x 1200 pixels @ 60 Hz
- Supports D-sub VGA avec une résolution maximum de 1920 x 1200 pixels @ 60 Hz
- Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
Slots d´extension
- 1 x PCIe 3.0 x16 (x16 mode)
- 2 x PCIe 3.0/2.0 x1
Stockage
- 1 x M.2 Socket 3, avec M key, type 2242/2260/2280 (SATA & PCIE 3.0 x 4 mode)
- 1 x M.2 Socket 3, avec M key, type 2242/2260/2280 (PCIE 3.0 x 4 mode)
- 6 x ports SATA 6 Gb/s, gris
- Support Raid 0, 1, 5, 10
- Intel Rapid Storage Technology
- Intel Optane Memory Ready
LAN
- Realtek RTL8111H, 1 x Gigabit LAN
- ASUS LAN Guard
Audio
- Realtek ALC887 8 canaux High Definition Audio CODEC
Ports USB
- 7 ports USB 3.1 Gen 1 jusqu'à 5 Gbps (5 à l'arrière, 4 x Type-A+1 x Type-C)
- 4 ports USB 2.0/1.1

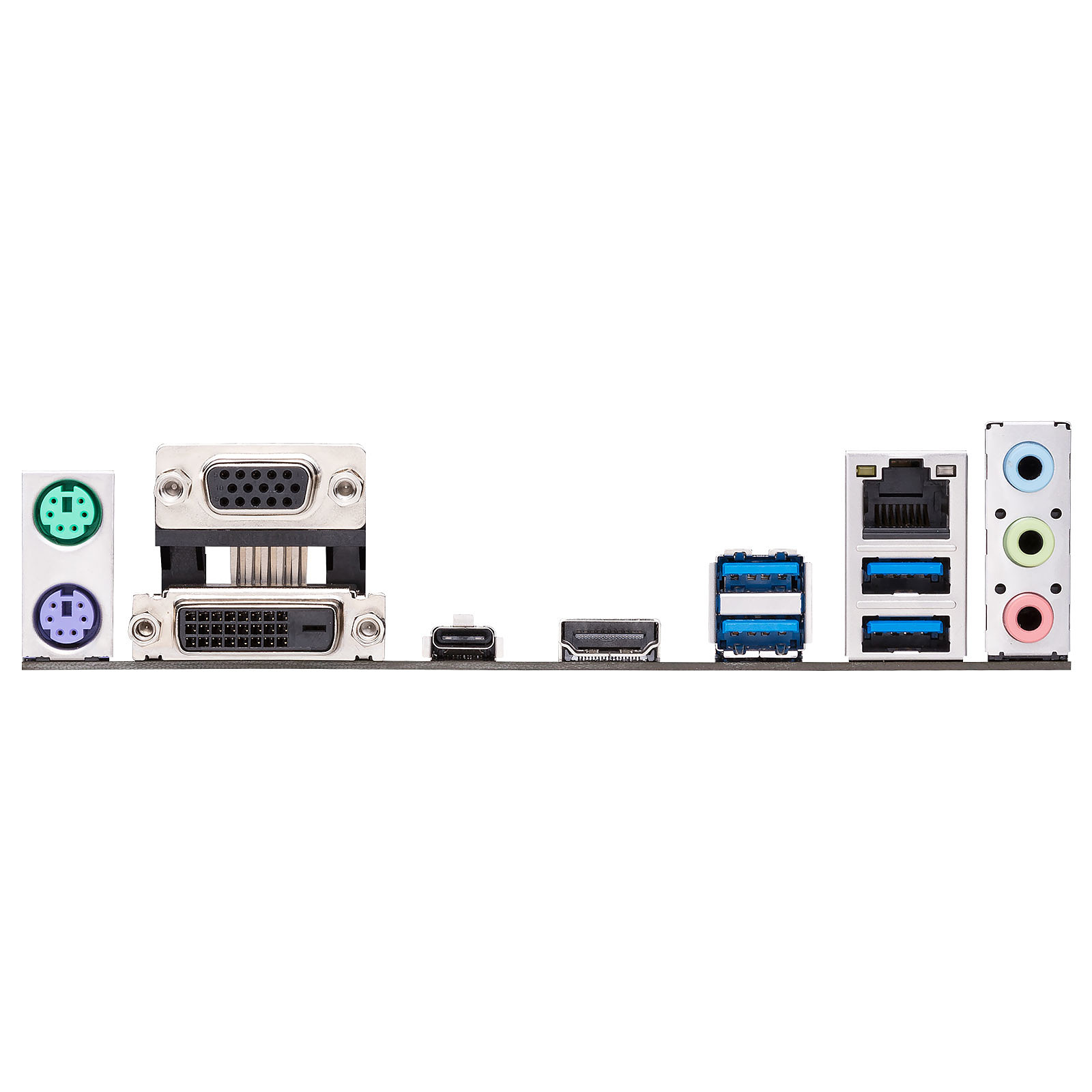

Interfaces arrière
- 1 port PS/2 clavier (violet)
- 1 port PS/2 souris (vert)
- 1 port DVI-D
- 1 port D-Sub (VGA)
- 1 port HDMI
- 1 port LAN (RJ45)
- 1 port USB 3.1 Gen 1 USB Type-CTM
- 4 port USB 3.1 Gen 1 Type-A
- 1 x 8-channel Audio I/O
Interfaces interne
- 1 x Aura RGB Strip Header
- 1 x USB 3.1 Gen 1 support additional 2 ports USB 3.1 Gen 1 (19-pin)
- 2 x USB 2.0 support additional 4 ports USB 2.0
- 2 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices
- 1 x TPM header
- 1 x LPT header
- 1 x COM port
- 6 x SATA 6Gb/s
- 1 x CPU Fan
- 2 x Chassis Fan
- 1 x S/PDIF out
- 1 x 24-pin EATX Power
- 1 x 8-pin EATX 12V Power
- 1 x Front panel audio (AAFP)
- 1 x Clear CMOS
- 1 x System panel
- 1 x Chassis intrusion
- 1 x Speaker
BIOS
- 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F6 Qfan Control, F12 PrintScreen, and ASUS DRAM SPD (Serial)
Gestion
- WOL (PME), PXE
Système d´exploitation
- Windows 10 64 bits
(Voir le site du constructeur)
Tout notre matériel informatique est livré sur la Réunion (974).
