Description du produit « Caméra extérieure UNIVIEW IPC2128LE-ADF27KM-G 4K RJ45 »

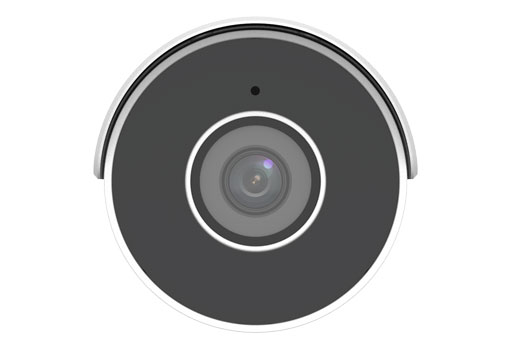

Caméra extérieure UNIVIEW IPC2128LE-ADF27KM-G 4K RJ45
(Voir tous les produits UNIVIEW)
-------------------
Fiche technique caméra extérieure UNIVIEW IPC2128LE-ADF28KM-G 4K RJ45
Code EAN : N.C
Camera
- Sensor : 1/2.7", 8.0 megapixel, progressive scan, CMOS
- Minimum Illumination : Support Easystar: Colour: 0.005 lux ( F1.6, AGC ON) 0Lux with IR on
- Day/Night : IR-cut filter with auto switch (ICR)
- Shutter : Auto/Manual, 1~1/100000 s
- Adjustment angle : Pan: 0° - 360°, Tilt: 0° - 90°, Rotate: 0° - 360°
- WDR : 120dB
Lentille
- Lens Type : 2.8mm @F1.6
- Iris : Fixed
- Field of View (H) : 98.3°
- Field of View (V) : 53.3°
- Field of View (D) : 103.1°
Illuminator
- IR Range : Up to 50m (164 ft) IR range
- Wavelength : 850nm
- IR On/Off Control : Auto/Manual
Video
- Video Compression : Ultra 265, H.265, H.264, MJPEG
- H.264 code profile : Baseline Profile, Main Profile, High Profile
- Frame Rate : Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps; Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate : 128 Kbps~16 Mbps
- U-code : Support
- OSD : Up to 4 OSDs
- Privacy Mask : Up to 4 areas
- ROI : Up to 8 areas
- Video stream : Dual streams
- White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction : 2D/3D DNR
- Smart IR : Support
- Flip : Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
- HLC : Supported
- BLC : Supported
Events
- Basic Detection : Cross line, intrusion(based on human body detection),motion detection, Ultra motion detection, tampering alarm, audio detection
- General Function : Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication
Audio
- Audio Compression : G.711U, G.711A
- Audio Bitrate : 64 Kbps
- Two-way Audio : N/A
- Suppression : Supported
- Sampling Rate : 8KHZ
Storage
- Edge Storage : Micro SD, up to 256GB
- Network Storage : ANR, NAS(NFS)
Network
- Protocols : IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP
- Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host : Up to 32 users. 2 user levels: administrator and common user
- Security : Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client : EZStation, EZView, EZLive
- Web Browser : Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above
Interface
- Network 1 x RJ45 10M/100M Base-TX Ethernet
(Voir la documentation technique)
(Voir le site du constructeur)
Tout notre matériel informatique est livré sur la Réunion (974).
Caractéristiques du produit « Caméra extérieure UNIVIEW IPC2128LE-ADF27KM-G 4K RJ45 »
- Dimensions : 190 mm × 73 mm × 71 mm
- Poids : 450 g
- Power : 12 V DC±25%, PoE (IEEE802.3 af)
- Power consumption : Max 6.5W
