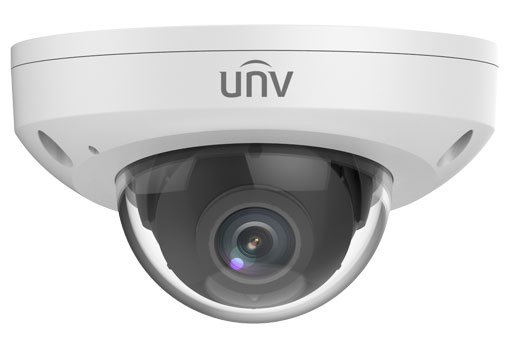

Caméra extérieure dôme UNIVIEW IPC318SB-ADF28K-I0 8MP RJ45

• Sensor : 1/3", 8.0 megapixel, progressive scan, CMOS
• Minimum Illumination : Colour: 0.002 lux (F1.6, AGC ON) 0 lux with IR
• Day/Night : IR-cut filter with auto switch (ICR)
• Shutter : Auto/Manual, 1 - 1/100000s
• Adjustment angle : Pan: 0° - 90°, Tilt: 0° - 68°, Rotate: 0° - 360°
• WDR : 120dB

• Lens : 2.8mm@F1.6
• Iris : Fixed
• Field of View (H) : 101.1°
• Field of View (V) : 55.3°
• Field of View (D) : 111.1°

• IR Range : Up to 30m (98ft) IR range
• wavelength : 850nm
• IR On/Off Control : Auto/Manual

• Video Compression : Ultra 265, H.265, H.264, MJPEG
• H.264 code profile : Baseline profile, Main Profile, High Profile
• Frame Rate : Main Stream: 8MP (3840*2160), Max 20fps; 5MP (3072*1728), Max 30fps; 4MP (2560*1440), Max 30fps; 1080P (1920*1080), Max 30fps;Sub Stream: 1080P (1920*1080), Max 30fps;720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
• Video Bit Rate : 128 Kbps - 16 Mbps
• U-code : Support
• OSD : Up to 8 OSDs
• Privacy Mask: Up to 4 areas
• ROI : Up to 8 areas
• Video Stream : Triple streams

• White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
• Digital noise reduction : 2D/3D DNR
• Smart IR : Support
• Flip : Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise
• BLC : Support
• Defog : Digital Defog

Events

• Basic Detection : Motion detection, Ultra motion detection, tampering alarm, audio detection
• General Function : Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

• Audio Compression : G.711U, G.711A
• Audio Bitrate : 64 Kbps
• Two-way audio : Support
• Suppression : Support
• Sampling Rate : 8KHZ

• Edge Storage : Micro SD, Up to 256GB
• Network Storage : ANR, NAS(NFS)

• Protocols : IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH,SSL/TLS
• Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API,SDK
• User/Host : Up to 32 users. 3 user levels: administrator, common user and operator
• Security : Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
• Client : EZStation, EZView, EZLive
• Web Browser : Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above, Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

• Audio I/O : 1 Input: impedance 35kΩ; amplitude 2V [p-p], 1 Output: impedance 600Ω; amplitude 2V [p-p]
• Network : 1 * RJ45 10M/100M Base-TX Ethernet
