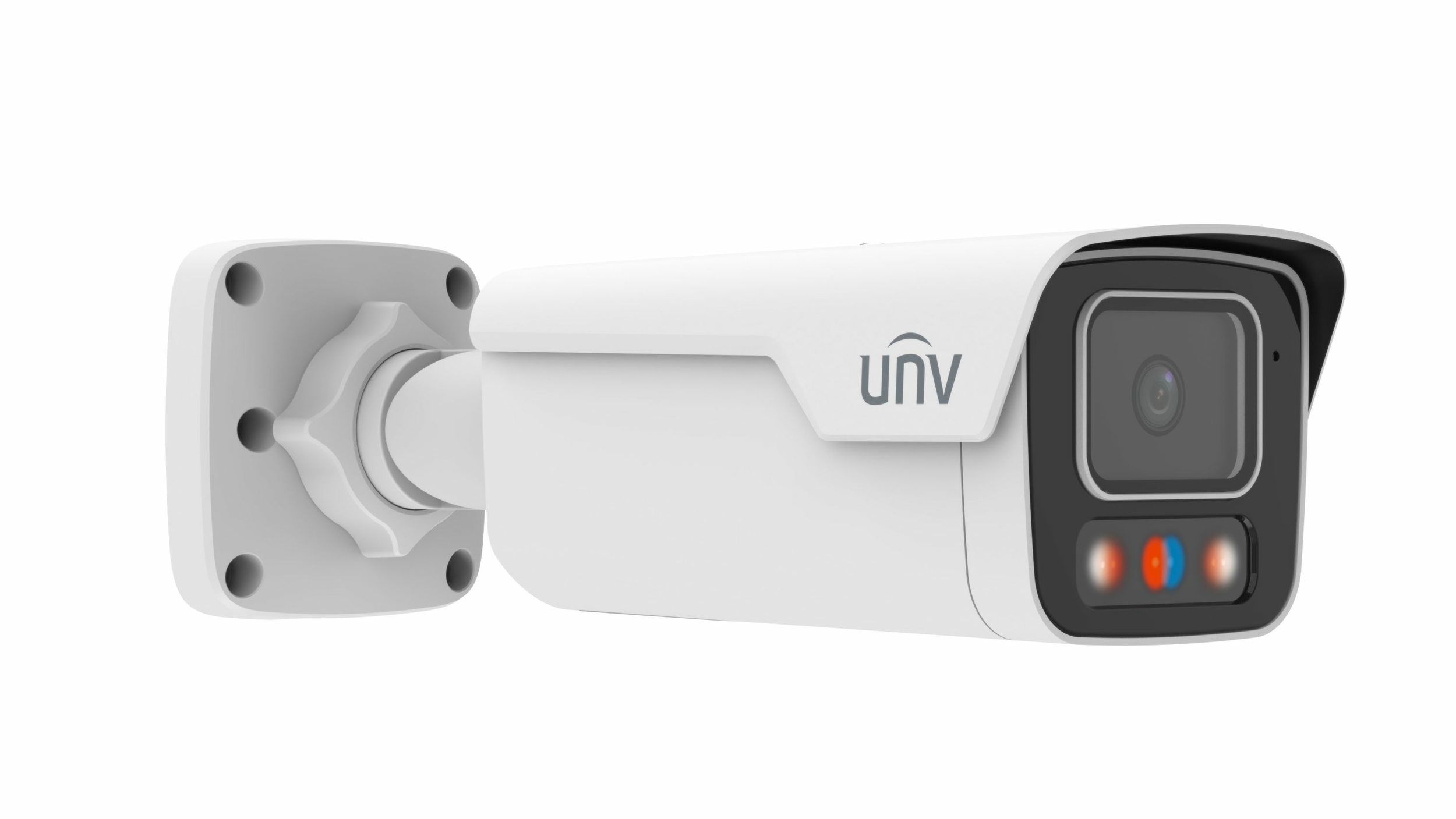

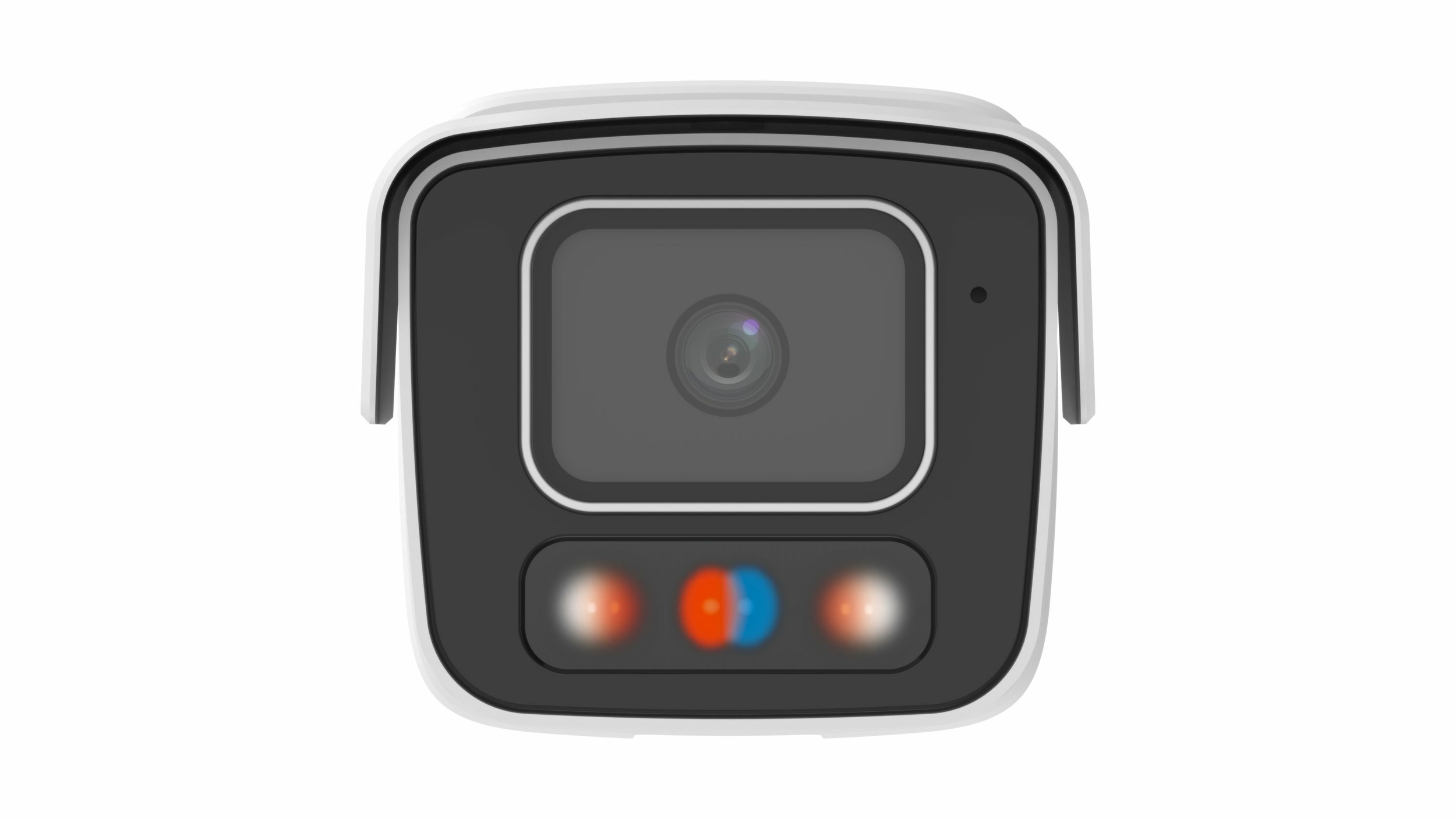

Description du produit « Caméra extérieure UNIVIEW IPC2B14SS-ADF28KMC-I1 4MP RJ45 »
Caméra extérieure UNIVIEW IPC2B14SS-ADF28KMC-I1 4MP RJ45
(Voir tous les produits UNIVIEW)
-------------------
Fiche technique caméra extérieure UNIVIEW IPC2B14SS-ADF28KMC-I1 4MP RJ45
Code EAN : N.C
Camera
- Max Resolution : 4 MP
- Sensor : 1/2.7" CMOS
- Min. Illumination : Colour: 0.001 lux ( F1.0, AGC ON) 0 lux with IR on
- Day/Night : IR-cut filter with auto switch (ICR)
- Shutter : Auto/Manual, 1 - 1/100000s
- Adjustment Angle : Pan: 0° - 360°, Tilt: 0° - 90°, Rotate: 0° - 360°
- WDR : 130 dB
Lens
- Focal Length : 2.8 mm
- Iris Type : Fixed
- Iris : F1.0
- Field of View (H) : 102.3°
- Field of View (V) : 54.7°
- Field of View (D) : 106.8°
- Lens Type : Fixed
Illuminator
- Supplemental Light : Dual light
- Illumination Distance (IR) : IR 40 m, Warm Light 40 m
- Illumination Distance (Warm Light) : IR 40 m, Warm Light 40 m
- IR On/Off Control : Auto/Manual
- Wavelength : 850 nm
- Light On/Off Control : Auto/Manual
Video
- Video Compression : Ultra 265, H.265, H.264, MJPEG
- H.264 Code Profile : Baseline profile, Main profile, High profile
- Frame Rate : Main Stream:4MP (2688*1520), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps;Sub Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
- Video Bit Rate : 128 Kbps to 16 Mbps
- U-code : Support
- OSD : Up to 8 OSDs
- Privacy Mask : Up to 4 areas
- ROI : Support
- Video Stream : Triple Streams
- White Balance : Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
- Digital Noise Reduction : 2D/3D DNR
- Smart IR : Support
- Auto Scene Match (ASM) : Support (Only WDR)
- Flip : Normal, Vertical, Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
- HLC : Support
- BLC : Support
- Defog : Digital Defog
Intelligent
- Smart Intrusion Prevention : Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
- People Counting : Support People Flow Counting and Crowd Density Monitoring
- Attribute Collection : SIP with color retrieval
Events
- Basic Detection : Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection, Object Removed, Object Left Behind
- General Function : Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication, Alarm Input, Alarm Output
Audio
- Audio Compression : G.711U, G.711A
- Audio Bitrate : 64 Kbps
- Two-way Audio : Support
- Suppression : Support
- Sampling Rate : 8 kHz
Storage
- Edge Storage : Micro SD, up to 512 GB
- Network Storage : ANR, NAS (NFS)
Network
- Protocols : IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, SSL/TLS, SSH
- Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API, SDK
- User/Host : Up to 32 users. 3 user levels: administrator, common user and operator
- Security : Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
- Client : UNV-Link, UNV-Link Pro, EZStation
- Web Browser : Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
- Audio I/O : 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
- Network : 1 × RJ45 10 M/100 M Base-TX Ethernet
(Voir la documentation technique)
(Voir le site du constructeur)
Tout notre matériel informatique est livré sur la Réunion (974).
Caractéristiques du produit « Caméra extérieure UNIVIEW IPC2B14SS-ADF28KMC-I1 4MP RJ45 »
- Dimensions : 269 mm × 96 mm × 82 mm
- Poids : 950 g
- Power : DC 12V±25%, PoE (IEEE 802.3af)
- Power Consumption : Max 9.5W
- Power Interface : Ø5.5 mm coaxial power plug
