Description du produit « Caméra extérieure dôme UNIVIEW IPC815SB-ADF14K-I0 5MP RJ45 »

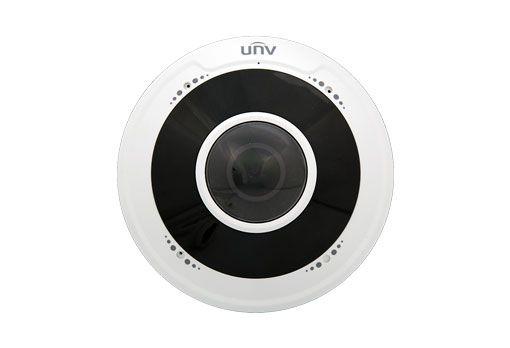

Caméra extérieure dôme UNIVIEW IPC815SB-ADF14K-I0 5MP RJ45
(Voir tous les produits UNIVIEW)
-------------------
Fiche technique caméra extérieure dôme UNIVIEW IPC815SB-ADF14K-I0 5MP RJ45
Code EAN : N.C
Camera
- Image sensor : 1/2.8", progressive scan, 5.0 megapixel, CMOS
- Minimum Illumination : Colour: 0.01 lux (F2.0, AGC ON) 0 lux with IR
- Day/Night : IR-cut filter for day & night function
- Shutter : Auto/Manual, shutter time: 1~1/100000 s
- WDR : 120dB
Lens
- Lens type : 1.4mm@F2.0
- Iris : Fixed
- Angle of View : 360°
Illuminator
- IR Range : UP to 10m (33ft)
- wavelength : 850nm
- IR On/Off Control : Auto/Manual
Video
- Compression : Ultra 265, H.265, H.264, MJPEG
- H.264 code profile : Baseline profile, Main Profile, High Profile
- Frame Rate : Main Stream: 5MP (2592*1944): Max.30fps; Sub Stream: 1080P (1920*1080): Max.30fps; 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps;
- Video Bit Rate : 128 Kbps - 16 Mbps
- U-code : Support
- OSD : Up to 8 OSDs
- Privacy Mask : Up to 4 areas
- ROI : Up to 8 areas
- Video Stream : Triple streams
- White Balance : Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2
- Digital noise reduction : 2D/3D DNR
- Smart IR : Support
- Flip : Normal/Flip Vertical/ Flip Horizontal/180°
- BLC : Support
- Defog : Digital Defog
Events
- Statistical Analysis : heat map
- Basic Detection : Motion detection, tampering alarm, audio detection
- General Function : Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Audio
- Audio Compression : G.711
- Audio Bitrate : 64 Kbps
- Two-way audio : Supported
- Suppression : Supported
- Sampling Rate : 8 KHZ
Storage
- Edge Storage : Micro SD, up to 256GB
- Network Storage : ANR, NAS(NFS)
Network
- Protocols : IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSH
- Compatible Integration : ONVIF (Profile S, Profile G, Profile T), API,SDK
- User/Host : Up to 32 users. 2 user levels: administrator and common user
- Security : Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
- Client : EZStation, EZView, EZLive
- Web Browser : Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+
Live View Display
- Mount Type : Support table, wall, and ceiling
- Decoding Mode : Support software decoding
- Display Mode : 11 display modes in total
- Software decoding: Ceiling mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ
- Wall mount: fisheye view, Panoramic, Panoramic+3PTZ, Panoramic+4PTZ, Panoramic+8PTZ
- Table mount: fisheye view, 360°Panoramic+1PTZ, 180°Panoramic, Fisheye+3PTZ, Fisheye+4PTZ, 360°Panoramic+6PTZ, Fisheye+8PTZ
Interface
- Audio I/O : Input: impedance 35 kΩ; amplitude 2 V [p-p], Output: impedance 600 Ω; amplitude 2 V [p-p]
- Alarm I/O : 1/1
- Built-in Mic : Supported 2
- Network : 1 * RJ45 10M/100M Base-TX Auto-adaptive Ethernet
(Voir la documentation technique)
(Voir le site du constructeur)
Tout notre matériel informatique est livré sur la Réunion (974).
Caractéristiques du produit « Caméra extérieure dôme UNIVIEW IPC815SB-ADF14K-I0 5MP RJ45 »
- Dimensions (Φ × H) : Φ125 × 43.7 mm
- Poids : 360 g
- Power : DC12V±25%,PoE (IEEE 802.3af)
- Power consumption : Max. 8.5W
- Power Interface : Ø 5.5mm coaxial power plug
